UNIVP-300/600 is a flexible, flameretardant PVC
tubing.
these are suitable for insulation of terminal lug, electrical
parts and used
for protective covering for wires. |
| |
 |
| |

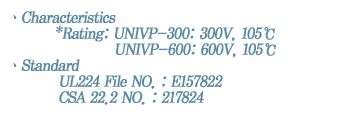

ㆍCharacteristics
* Rating: UNIVP-300: 300V, 105℃
UNIVP-600: 600V, 105℃
ㆍStandard
UL224 File NO. : E157822
CSA 22.2 NO. : 217824
ㆍMaterial
Flexible, Semi-rigid, flame-retardent Polyvinyl Chloride tubing |
| |
 |
| |
ㆍStandard color : Black, Clear (*special colors are available
upon request)
ㆍStandard packaging : On Reels (*on spools are available upon request)
ㆍOrdering description : specify product name, size, and
color [ex. PVC-TUBE 3 AWG Clear] |
| |
 |
| |
|
SIZE (AWG) |
Inside
Dia. (mm) |
Cat. NO. UNIVP-600
600V, 105℃ |
Cat. NO. UNIVP-300
300V, 105℃ |
Nominal
Thickness
(mm) |
Minimum
Thickness
(mm) |
Nominal
Dia
(mm) |
Nominal
Thickness
(mm) |
Minimum
Thickness
(mm) |
Nominal
Dia
(mm) |
| 24 |
0.50 |
0.57 |
0.51 |
1.64 |
0.40 |
0.34 |
1.30 |
| 22 |
0.65 |
0.57 |
0.51 |
1.79 |
0.40 |
0.34 |
1.50 |
| 20 |
0.85 |
0.57 |
0.51 |
1.99 |
0.40 |
0.34 |
1.65 |
| 19 |
0.90 |
0.57 |
0.51 |
2.04 |
0.40 |
0.34 |
1.00 |
| 18 |
1.00 |
0.57 |
0.51 |
2.14 |
0.40 |
0.34 |
1.80 |
| 17 |
1.20 |
0.62 |
0.56 |
2.44 |
0.40 |
0.34 |
2.00 |
| 16 |
1.30 |
0.62 |
0.56 |
2.54 |
0.40 |
0.34 |
2.10 |
| 15 |
1.50 |
0.62 |
0.56 |
2.75 |
0.40 |
0.34 |
2.30 |
| 14 |
1.60 |
0.62 |
0.56 |
2.84 |
0.40 |
0.34 |
2.40 |
| 13 |
1.80 |
0.62 |
0.56 |
3.04 |
0.40 |
0.34 |
2.60 |
| 12 |
2.0 |
0.62 |
0.56 |
3.24 |
0.40 |
0.34 |
2.80 |
| 11 |
2.30 |
0.62 |
0.56 |
3.52 |
0.40 |
0.34 |
3.10 |
| 10 |
2.60 |
0.62 |
0.56 |
3.84 |
0.40 |
0.34 |
3.40 |
| 9 |
2.90 |
0.62 |
0.56 |
4.14 |
0.50 |
0.44 |
3.90 |
| 8 |
3.30 |
0.62 |
0.56 |
4.54 |
0.50 |
0.44 |
4.30 |
| 7 |
3.70 |
0.62 |
0.56 |
4.94 |
0.50 |
0.44 |
4.70 |
| 6 |
4.10 |
0.62 |
0.56 |
5.34 |
0.50 |
0.44 |
5.10 |
| 5 |
4.60 |
0.62 |
0.56 |
5.84 |
0.50 |
0.44 |
5.60 |
| 4 |
5.20 |
0.62 |
0.56 |
6.44 |
0.50 |
0.44 |
6.20 |
| 3 |
5.80 |
0.62 |
0.56 |
7.04 |
0.50 |
0.44 |
6.80 |
| 2 |
6.50 |
0.62 |
0.56 |
7.94 |
0.50 |
0.44 |
7.50 |
| 1 |
7.30 |
0.62 |
0.56 |
8.54 |
0.50 |
0.44 |
8.30 |
| 0 |
8.20 |
0.62 |
0.56 |
9.44 |
0.50 |
0.44 |
9.20 |
| 5/6inch |
8.00 |
0.62 |
0.56 |
9.24 |
0.62 |
0.56 |
9.24 |
| 6/16inch |
9.50 |
0.62 |
0.56 |
10.74 |
0.62 |
0.56 |
10.74 |
| 7/16inch |
11.00 |
0.62 |
0.56 |
12.24 |
0.62 |
0.56 |
12.24 |
| 8/16inch |
12.50 |
0.62 |
0.56 |
13.74 |
0.62 |
0.56 |
13.74 |
| 9/16inch |
14.00 |
0.77 |
0.71 |
15.54 |
0.77 |
0.71 |
15.54 |
| 10/16inch |
16.00 |
0.77 |
0.71 |
17.54 |
0.77 |
0.71 |
17.54 |
| 12/16inch |
19.00 |
0.83 |
0.77 |
20.66 |
0.83 |
0.77 |
20.66 |
| 14/16inch |
22.00 |
0.83 |
0.77 |
23.66 |
0.83 |
0.77 |
23.66 |
| 1inch |
25.00 |
0.83 |
0.77 |
26.66 |
0.83 |
0.77 |
26.66 |
ㆍ Special order size are aveilable upon
request
ㆍ Wall thickness will be less if tubing recovery is
restricted during shrinkage |
|
 |
| |
|
|
|
|
