KUHS-DW is designed for all general purpose
application such as the
Insulation and strain relief of electrical connection and
termination, light-duty
Harnessing, jacketing, bundling, and coding of wires.
Environmentally seals and protects components and inter
connections. |
| |
 |
| |

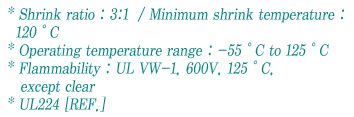

ㆍShrink ratio : 3:1
ㆍMinimum shrink temperature : 120℃
ㆍOperating temperature range : -55℃ to 125℃
ㆍFlammability : UL VW-1 , 600V , 125℃ , except clear
ㆍUL224[REF.] |
| |
 |
| |
ㆍStandard color : Black (*special colors are available upon
request)
ㆍStandard packaging : In 1.2meter[4foot lengths]
ㆍOrdering description : specify product name, size, and
color [ex. KUHS-DW 3/1 Black] |
| |
 |
| |
| |
Properties |
Test Methods |
Values |
|
Physical |
Unaged |
Tensile strength |
ASTM D-638 |
Min. 1.1kgf/㎟ |
|
Elongation |
UL 224 |
Min. 200% |
|
Aged |
Tensile strength |
ASTM D 638
UL 224
158℃/168hrs |
Min. 0.8kgf/㎟ |
|
Elongation |
Min. 100% |
|
Heat shock |
MIL-I-23053 |
Pass@250℃X4hrs |
|
Low temperature flexibility |
MIL-I-23053 |
NO crack@-55℃X4hrs |
|
Secant modulus |
UL 224 |
Max.173MPa |
|
Electrical |
Dielectric strength |
UL 224 |
Min. 2500V/1min |
|
Volume resistivity |
UL 224 |
Min 1X10¹⁴Ω-㎝ |
|
Chemical |
Copper corrosion |
MIL-I-23053
158℃/168hrs |
No corrosion |
Copper stability
Elongation |
No sign of degradation
Min. 100% |
|
Flammability(VW-1) |
UL 224 |
Pass |
|
| |
 |
| |
|
SIZE |
INSIDE DIAMETER |
WALL THICKNESS |
STANDARD
LENGTH
(M) |
as
supplied
(NOM) |
after
recovery
(MAX) |
Norminal
adhesive wall
recovery |
Norminal
Total wall
after recovery |
| 3.0㎜ |
3.0㎜ |
1.0㎜ |
0.50㎜ |
1.0㎜ |
1.2ｍ |
| 4.5㎜ |
4.5㎜ |
1.5㎜ |
0.55㎜ |
1.1㎜ |
1.2ｍ |
| 6.0㎜ |
6.0㎜ |
2.0㎜ |
0.55㎜ |
1.2㎜ |
1.2ｍ |
| 9.0㎜ |
9.0㎜ |
3.0㎜ |
0.65㎜ |
1.3㎜ |
1.2ｍ |
| 12.0㎜ |
12.0㎜ |
4.0㎜ |
0.65㎜ |
1.35㎜ |
1.2ｍ |
| 16.0㎜ |
16.0㎜ |
5.0㎜ |
0.70㎜ |
1.4㎜ |
1.2ｍ |
| 19.0㎜ |
19.0㎜ |
6.0㎜ |
1.05㎜ |
2.1㎜ |
1.2ｍ |
| 24.0㎜ |
24.0㎜ |
8.0㎜ |
1.10㎜ |
2.2㎜ |
1.2ｍ |
| 31.0㎜ |
31.0㎜ |
11.0㎜ |
1.15㎜ |
2.3㎜ |
1.2ｍ |
| 38.0㎜ |
38.0㎜ |
13.0㎜ |
1.2㎜ |
2.4㎜ |
1.2ｍ |
| ㆍ Special order size are available upon
request |
|
 |
| |
|
