KUHS-105 is designed for all general purpose
application such as the
Insulation and strain relief of electrical connection and
termination, light-duty
Harnessing, jacketing, bundling, of wires, and identification of
cables, electronics
components |
|
 |
|

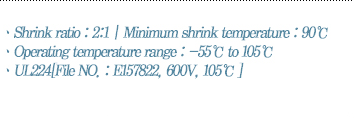

ㆍShrink ratio : 2:1
ㆍMinimum shrink temperature : 90℃
ㆍOperating temperature range : -55℃ to 105℃
ㆍUL224[File NO. : E157822, 600V, 105℃ ] |
|
 |
|
ㆍStandard color : Clear (*special colors are available upon
request)
ㆍStandard packaging : On spools
ㆍOrdering description : specify product name, size, and
color [ex. KUHS-105 3.0mm Clear] |
|
 |
|
|
Properties |
Test
Methods |
Values |
Physical |
Unaged |
Tensile strength |
ASTM D-412 |
Min. 1.1kgf/㎟ |
Elongation |
UL 224 |
Min. 200% |
Aged |
Tensile strength |
ASTM D 412
UL 224
158℃/168hrs |
Min. 0.8kgf/㎟ |
Elongation |
Min. 100% |
Heat shock |
UL 224 |
Pass@250℃X4hrs |
Low temperature flexibility |
ASTM D 2671 |
NO crack@-55℃X4hrs |
Secant modulus |
UL 224 |
Max.173MPa |
Electrical |
Dielectric strength |
UL 224 |
Min. 2500V/1min |
Volume resistivity |
UL 224 |
Min 1X10¹⁴Ω-㎝ |
Chemical |
Copper corrosion |
MIL-I-23053
158℃/168hrs |
No corrosion |
Copper stability
Elongation |
UL 224
158℃/168hrs |
No sign of degradtion
Min. 100% |
|
|
 |
|
SIZE |
INSIDE DIAMETER |
WALL THICKNESS |
LENGTH |
FORM |
as
supplied
(AVERAGE) |
after
recovery
(MAX) |
as
supplied
(NOM) |
after
recovery
(MIN) |
1.0㎜ |
1.2㎜ |
0.50㎜ |
0.20㎜ |
0.36㎜ |
200m |
Round |
1.2㎜ |
1.4㎜ |
0.60㎜ |
0.20㎜ |
0.36㎜ |
200m |
Round |
1.5㎜ |
2.0㎜ |
0.75㎜ |
0.20㎜ |
0.44㎜ |
200m |
Round |
2.0㎜ |
2.5㎜ |
1.00㎜ |
0.20㎜ |
0.44㎜ |
100m |
Round |
2.5㎜ |
3.0㎜ |
1.25㎜ |
0.25㎜ |
0.44㎜ |
100m |
Round |
3.0㎜ |
3.4㎜ |
1.50㎜ |
0.25㎜ |
0.44㎜ |
100m |
Round |
3.5㎜ |
3.9㎜ |
1.75㎜ |
0.25㎜ |
0.44㎜ |
100m |
Round |
4.0㎜ |
4.4㎜ |
2.00㎜ |
0.25㎜ |
0.44㎜ |
100m |
Round |
4.5㎜ |
5.0㎜ |
2.25㎜ |
0.25㎜ |
0.56㎜ |
100m |
Round |
5.0㎜ |
5.6㎜ |
2.50㎜ |
0.25㎜ |
0.56㎜ |
100m |
Round |
6.0㎜ |
6.5㎜ |
3.00㎜ |
0.25㎜ |
0.56㎜ |
100m |
Round |
7.0㎜ |
7.7㎜ |
3.50㎜ |
0.25㎜ |
0.56㎜ |
100m |
Flat |
8.0㎜ |
8.6㎜ |
4.00㎜ |
0.25㎜ |
0.56㎜ |
100m |
Flat |
9.0㎜ |
9.8㎜ |
4.50㎜ |
0.25㎜ |
0.56㎜ |
100m |
Flat |
10.0㎜ |
10.4㎜ |
5.00㎜ |
0.25㎜ |
0.56㎜ |
100m |
Flat |
11.0㎜ |
11.4㎜ |
5.50㎜ |
0.25㎜ |
0.56㎜ |
100m |
Flat |
12.0㎜ |
12.5㎜ |
6.00㎜ |
0.25㎜ |
0.56㎜ |
100m |
Flat |
13.0㎜ |
13.7㎜ |
6.50㎜ |
0.30㎜ |
0.69㎜ |
100m |
Flat |
14.0㎜ |
14.4㎜ |
7.00㎜ |
0.30㎜ |
0.69㎜ |
100m |
Flat |
15.0㎜ |
15.6㎜ |
7.50㎜ |
0.30㎜ |
0.69㎜ |
100m |
Flat |
16.0㎜ |
16.7㎜ |
8.00㎜ |
0.30㎜ |
0.69㎜ |
50m |
Flat |
18.0㎜ |
19.3㎜ |
9.00㎜ |
0.35㎜ |
0.77㎜ |
50m |
Flat |
20.0㎜ |
21.7㎜ |
10.0㎜ |
0.40㎜ |
0.77㎜ |
50m |
Flat |
22.0㎜ |
23.4㎜ |
11.0㎜ |
0.40㎜ |
0.77㎜ |
50m |
Flat |
25.0㎜ |
25.5㎜ |
12.5㎜ |
0.45㎜ |
0.87㎜ |
50m |
Flat |
28.0㎜ |
29.0㎜ |
14.0㎜ |
0.45㎜ |
0.87㎜ |
50m |
Flat |
30.0㎜ |
31.0㎜ |
15.0㎜ |
0.50㎜ |
0.87㎜ |
50m |
Flat |
38.0㎜ |
39.0㎜ |
19.0㎜ |
0.50㎜ |
0.97㎜ |
30m |
Flat |
50.0㎜ |
51.0㎜ |
25.0㎜ |
0.50㎜ |
0.97㎜ |
30m |
Flat |
ㆍ Special order size are available upon
request
|
|
 |
|
|
